Battery type: 3.2v 100Ah Lifepo4 battery cells
Cycle life:6000@ 0.2C DOD 25℃
Battery size:450*430*177mm

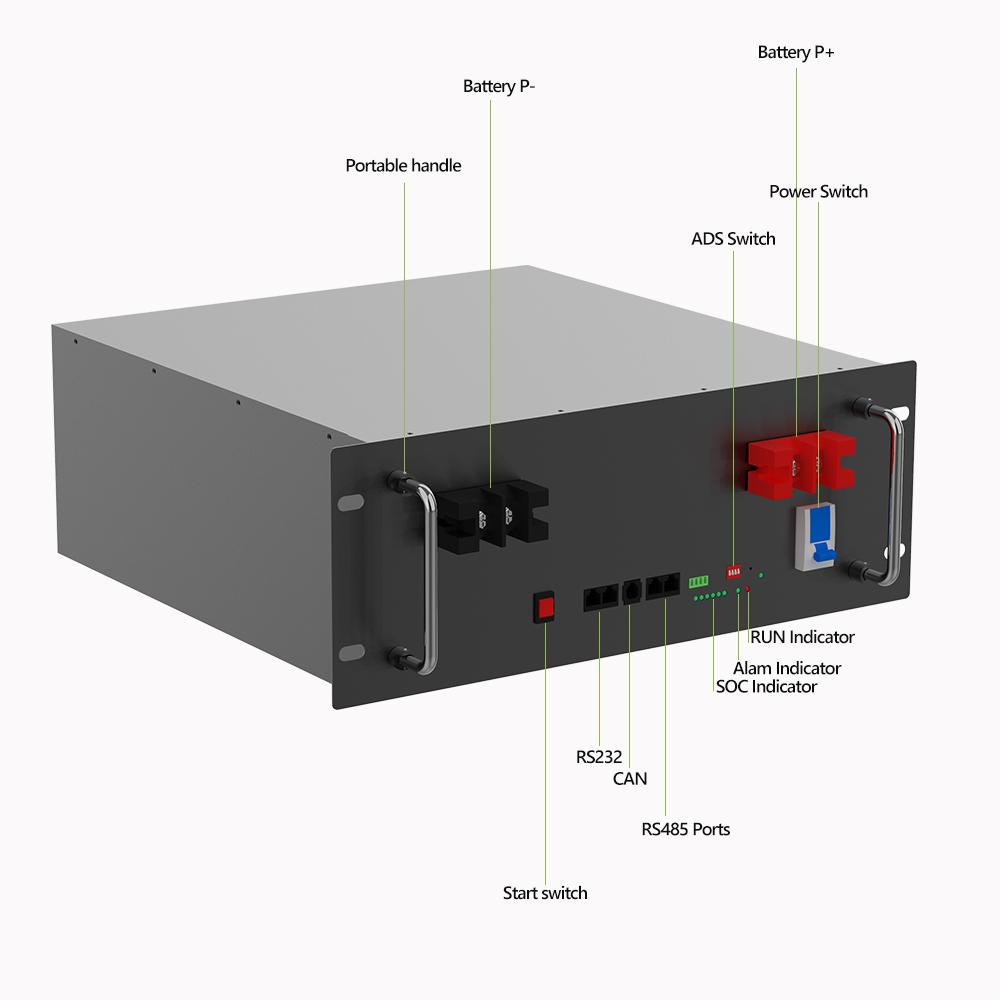

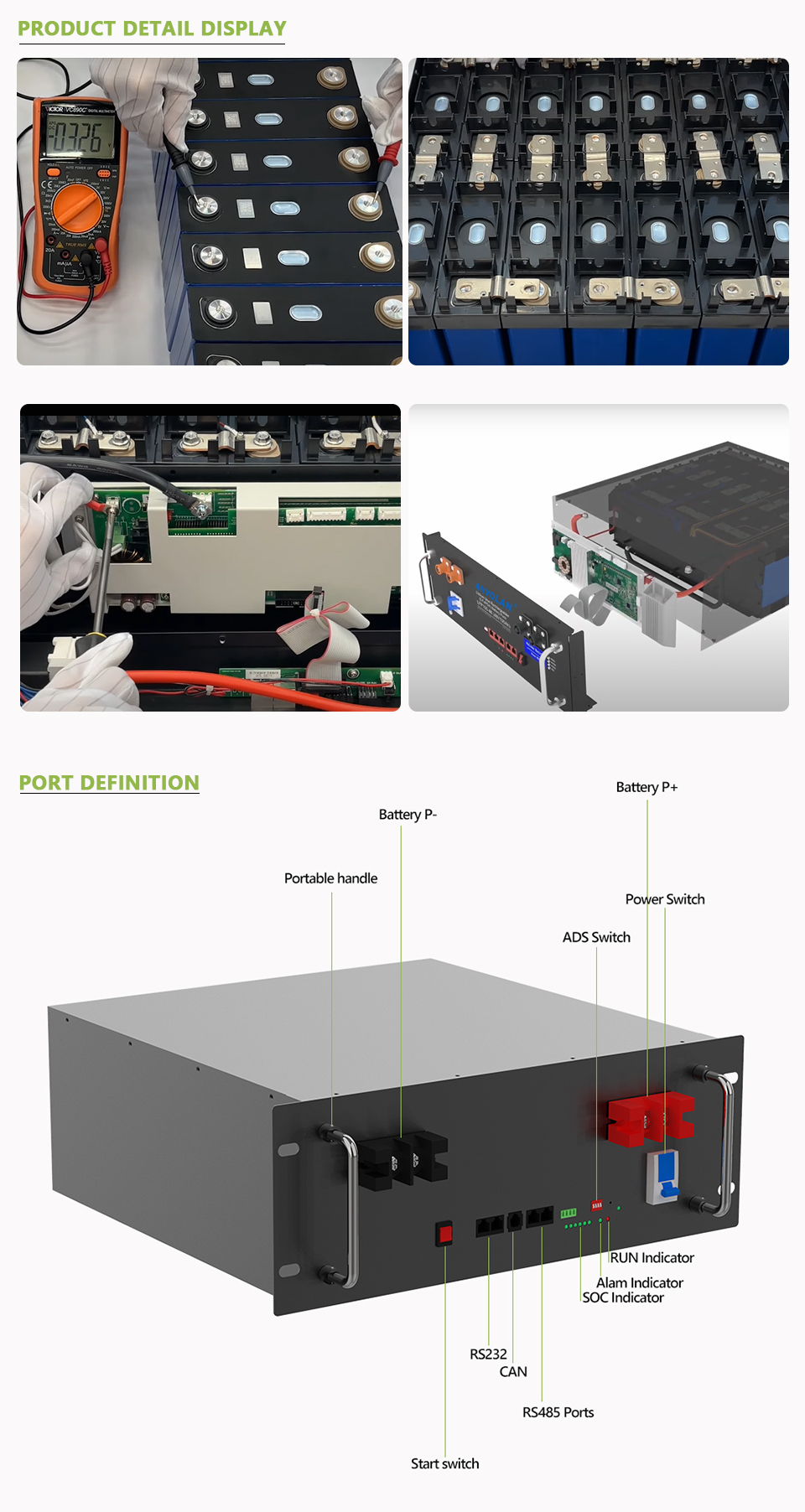

Communication:CAN/RS232/RS485
Weight:47Kg

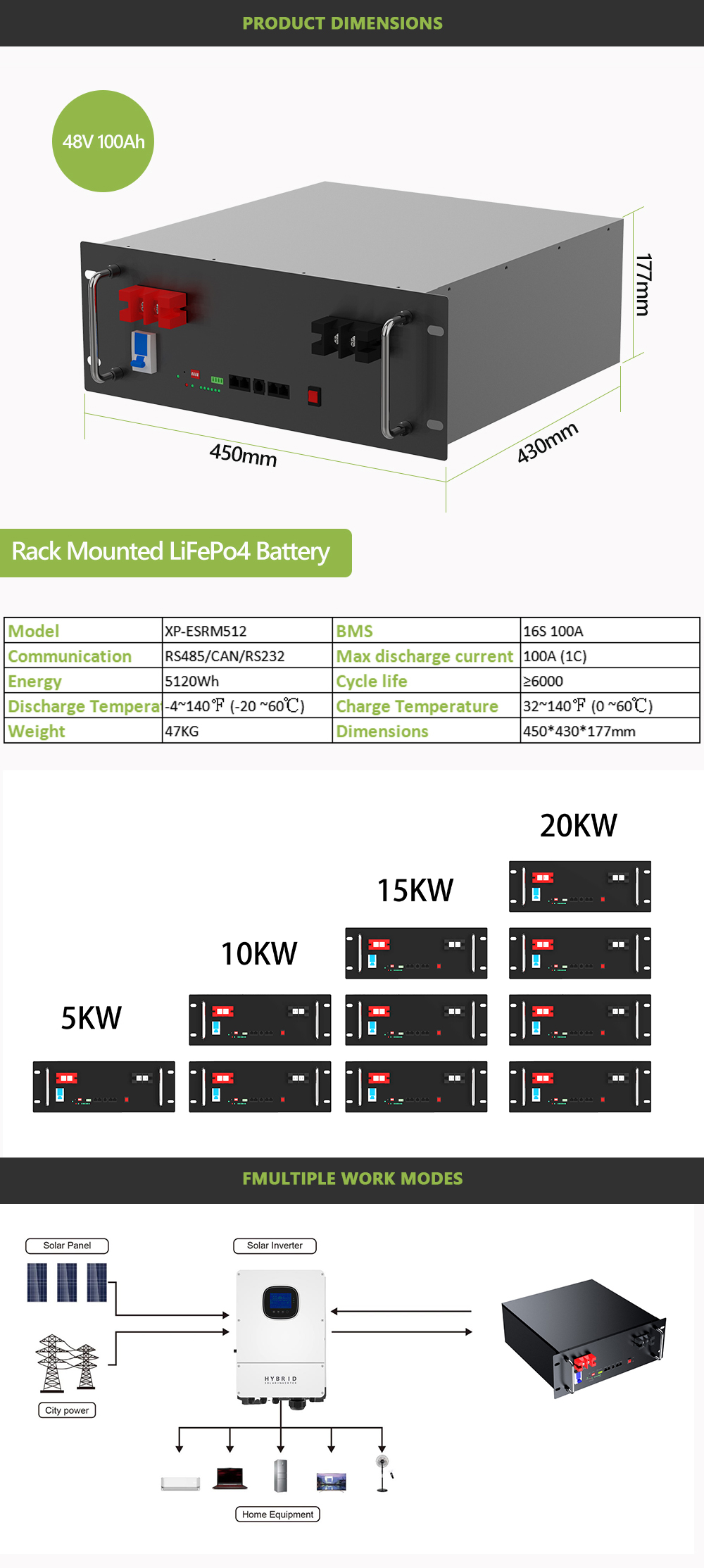

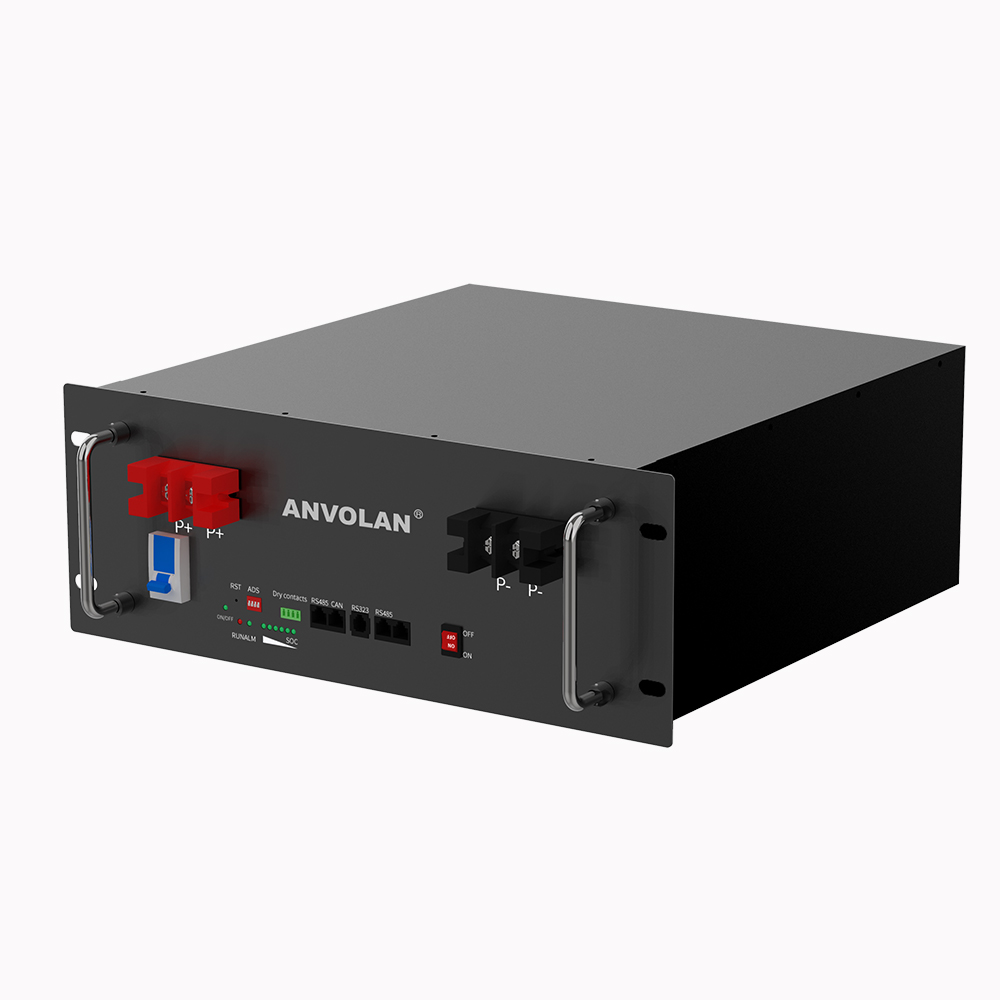

Model | XP-ESRM512 |
Cell | LiFePo4 |
Cycle Life | 6000@ 0.2C DOD 25℃ |
Nominal Voltage | 51.2V |
Nominal Capacity | 100Ah |
Battery Module Usable Energy | 5.12KWh |
Communication | CAN/RS232/RS485 |
Power Level Indicator | LCD Dispaly |
Efficiency | >96% |

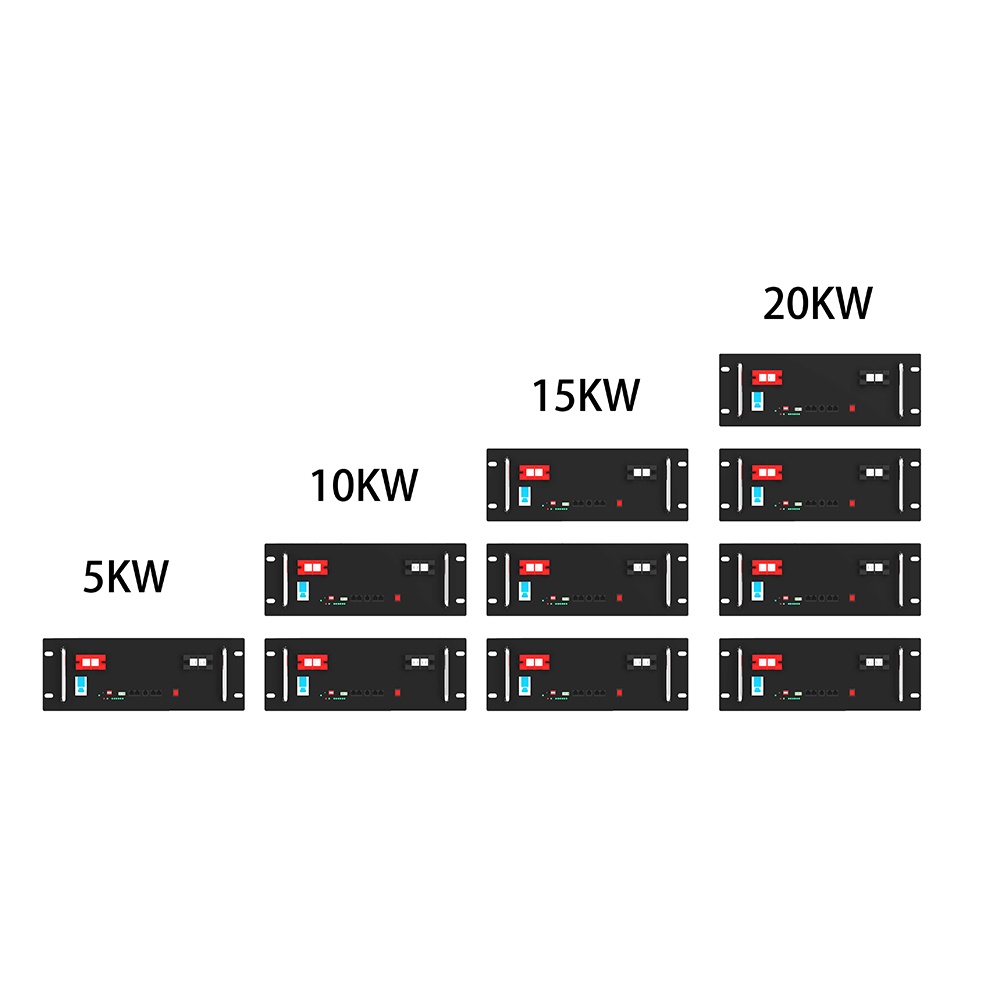

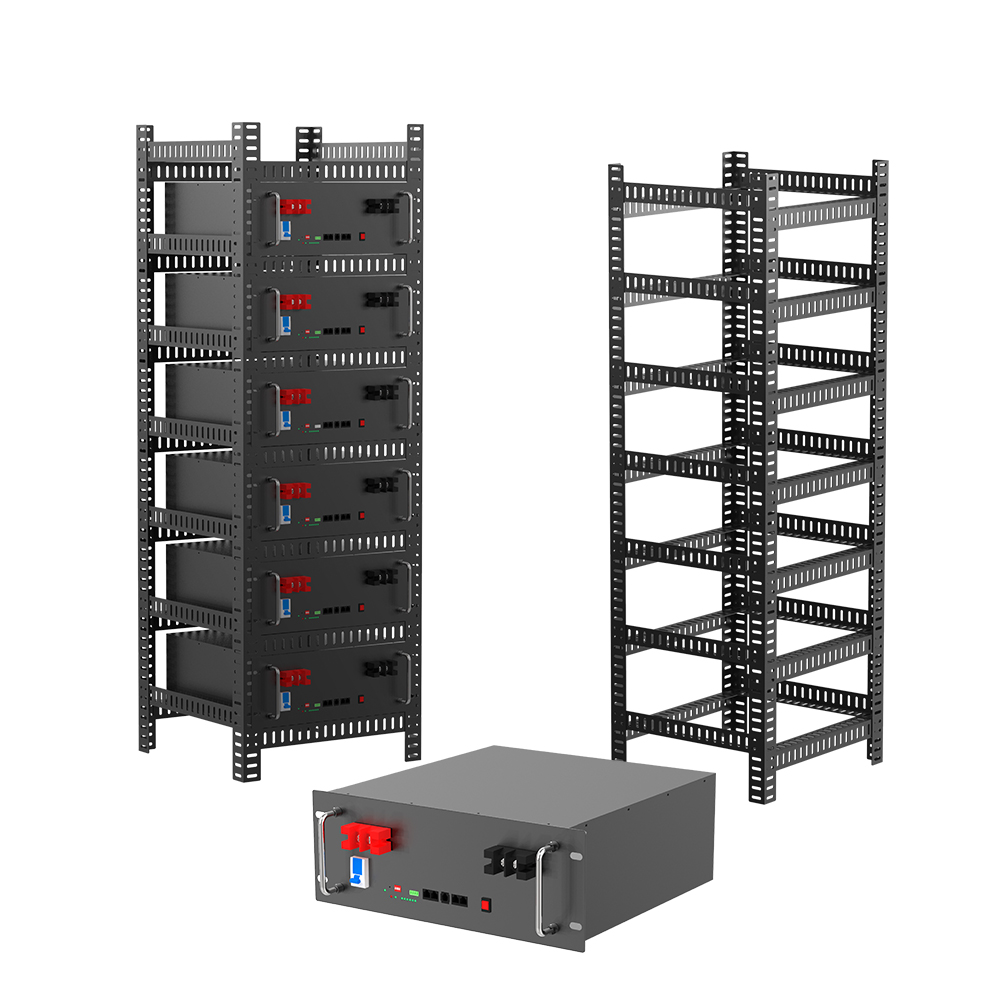

Module Parallel | Up to 15 packs |
Charge Performance | |
Recommend Charge Current | 20A |
Maximum Charge Current | 100A |
Recommend Charge Voltage | 57.6V |
BMS Charge Cut-off Voltage | <58.4 (3.65V/cell) |
Discharge Performance | |
Maximum Continuous Discharge Current | 100A |
Peak Discharge Current | 110A (1s), 150A (100mS) |
BMS Discharge Cut-Off Voltage | 43.2 V(2s)(2.0V/Cell) |
Temperature Performance | |
Discharge Temperature | -4~140℉ (-20 ~60℃) |
Charge Temperature | 32~140℉ (0 ~60℃) |
Storage Temperatue | 23~95℉ (-5 ~35℃) |
BMS High Temperature Cut-Off | 140℉ (60℃) |
Reconnect Temperature | 113℉ (55℃) |
Heating Foil Performance | |
Heating Current | Optional |
Mechanical Performance | |
Casing | SPCC with coating |

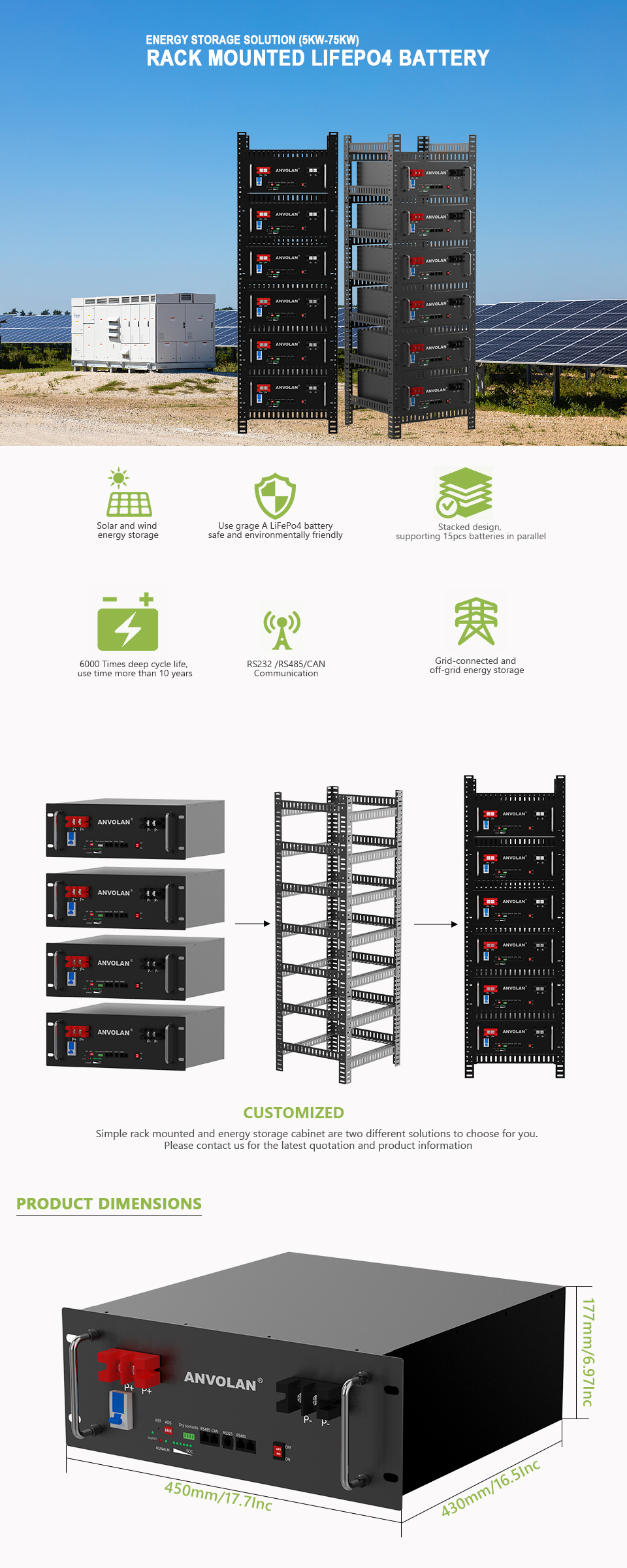

Dimension (L*W*H) of Battery Pack | 450*430*177mm |
Approx. Weight | 47Kg |
Terminal Type | Customizable |
Enclosure Protection | IP20 |
Packing Info | |
Package | 1pcs/UN Carton, size:556*515*257mm |
Warranty | 36 months |
Compliance | |
Certification | CE (Battery), UN38.3 (Battery), UL1642& IEC62133 (Cell) |
Shipping Classification | UN3480, CLASS9 |
