Model | XP-20S-72V45Ah-A-EM |
Casing | Metal |
Cell | NCM Prismatic 20S |
Voltage | 60V |
Capacity | 45Ah |
Cycle Life | >800 |
Max Working Voltage | 85V |
Voltage of Charger | 84V |
Charge Current | 20A max |
Discharge Current | 40A |
Discharge Current (Peak) | 103A (500mS) 133A (1000mS) |
Discharge Cut-Off Voltage | 56V |
Charge Temperature | 0℃-45℃ |
Discharge Temperature | -10℃-45℃ |
Protection | Over Charge, Over Discharge, Over Current, Short Circuit, Cell Balancing,etc |
Power Level Indicator | LCD |
Input/Output | C-14 3PIN male |
Protocol | Optional |

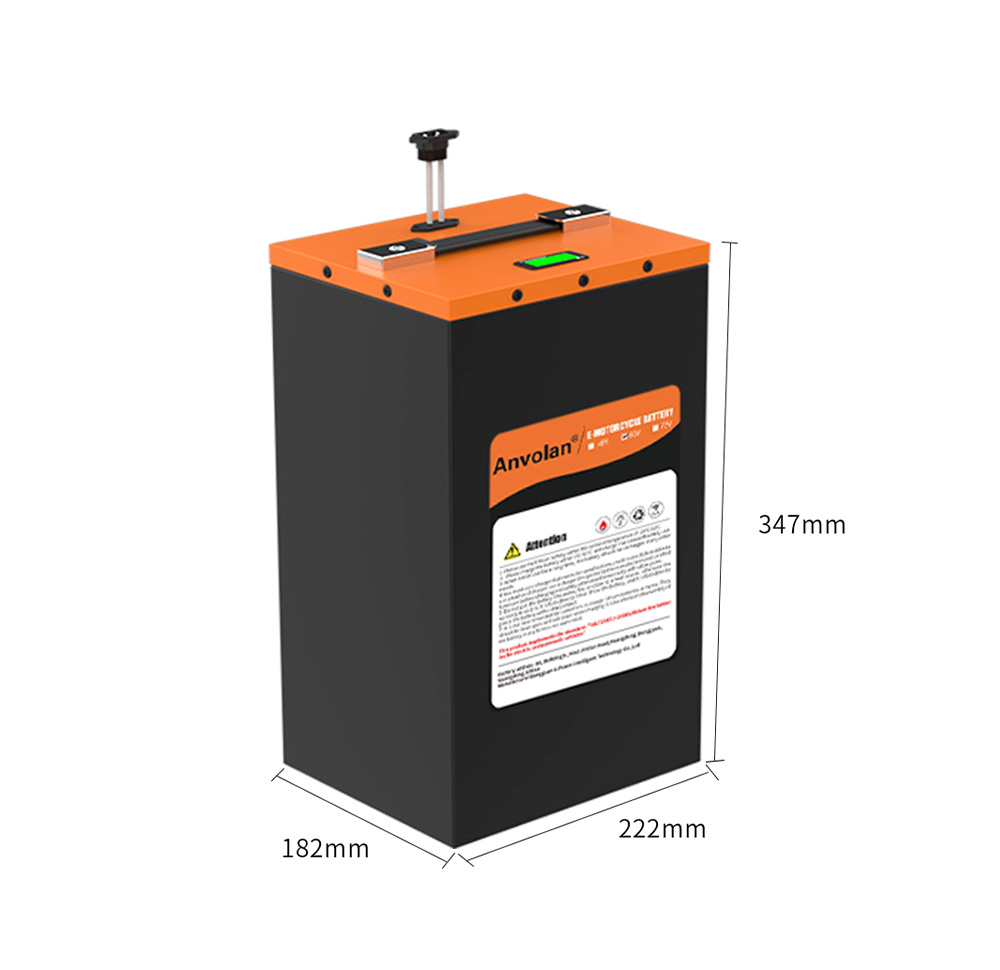

Size: | 222*182*347mm |
Weight | 21.3KG |
Certificate | MSDS, UN38.3, Sea Transfer of Goods |
Package | UN Carton |
Warranty | 12 months |
